PTA-02

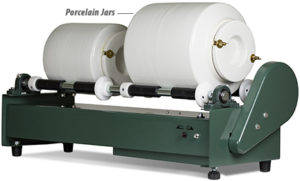

PTA-02 is heavy-duty ball milling machines enable very precise milling, in porcelain jars, even for relatively tough materials, wet or dry. The PTA-02 ball mill has a compact design that is ideal for small-scale production and is constructed using powder-coated steel for long-lasting durability. The PTA-02 can handle two jars. Easy adjustments can be made to the sturdy roller bars to accommodate jars from 1-liter to 10-liters. Each milling machine comes standard with a breaker switch.
Features
-
- Heavy-duty milling machine enables very precise milling
- Compact design, ideal for small-scale production
- Model construction is powder-coated steel for long-lasting durability
- Standard breaker switch
- Heavy-duty adjustable roller bars
- Accommodates two jars at once from 1 – 10 liters
- 2 year warranty
Motor | 115V (60Hz) 180W |
Torque | Approx 5Nm |
Shaft Rotational Speed | 247rpm, Jar rotational speed 30rpm at 50Hz |
Dimensions | 38″ x 17″ x 14″ |
Max Weight | 33 kg = 72.75 lbs |
Ship Weight | 88 lbs |
Porcelain Jars
One to ten liter Porcelain Jars are also available to complete your milling needs. Every jar comes with the porcelain balls needed for milling.
1-Liter Porcelain Jar
1-Liter Porcelain Jar comes with about 40 balls ranging from ½” – 1″ in diameter (Mixed).
The 1-Liter Porcelain Jar dimensions 5 ¾” D x 8 ” H.
Product number: BMJ-1L
Suggested Retail Price: $225.00
2-Liter Porcelain Jar
2-Liter Porcelain Jar comes with about 60 balls ranging from ¾” – 1 ¼” in diameter (Mixed).
The 2-Liter Porcelain Jar dimensions 7″ D x 9 ½” H.
Product number: BMJ-2L
Suggested Retail Price: $275.00
3-Liter Porcelain Jar
3-Liter Porcelain Jar comes with about 40 balls ranging from 1″ – 1 ¼” in diameter (Mixed).
The 3-Liter Porcelain Jar dimensions 8″ D x 11″ H.
Product number: BMJ-3L
Suggested Retail Price: $475.00
5-Liter Porcelain Jar
5-Liter Porcelain Jar comes with about 60 balls ranging from 1″ – 1 ¼” in diameter (Mixed).
The 5-Liter Porcelain Jar dimensions 9 ½” D x 12 ½” H.
Product number: BMJ-5L
Suggested Retail Price: $540.00
10-Liter Porcelain Jar
10-Liter Porcelain Jar comes with about 120 balls ranging from 1″ – 1 ¼” in diameter (Mixed).
The 10-Liter Porcelain Jar dimensions 12″ D x 14″ H.
Product number: BMJ-10L
Suggested Retail Price: $915.00
