NVS-07

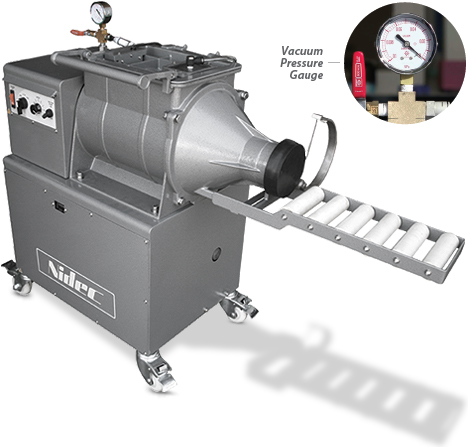

The NVS-07 De-Airing Pugmill Mixer features a powerful 1HP Motor for mixing and extruding, it is all stainless steel, giant hopper and good size nozzle (which also is compatible with the add on dies), the clay cutter and roller shelf is included and very easy access for cleaning and maintenance. Also a great feature is the dual safety system that includes a limit switch and overload system.
Features
-
- All stainless steel
- Dual safety system; limit switch and overload system
- Powerful 1 HP Motor; mixing and extruding
- Includes clay cut-off wire and clay receiving table
- Roller shelf included
- Oil-free vacuum pump system
- Large hopper and nozzle
- Max batch capacity 20.4 kg
- Maintenance access; easy access for cleaning and maintenance
Motor | 1 HP, gear driven |
Power Source | 220 V / 50 HZ |
Max Batch Capacity | 20.4 kg |
Hopper Size | 216 x 292 mm |
Vacuum Pump System | Air vacuum pump system (oil-free) |
Nozzle diameter | 90 mm nozzle opening |
Dimensions | 889 mm x 431.8 mm x 838.2 mm (1193.8 mm long with roller shelf extended) |
Weight | 140.6 kg |
Assorted Die
NIDEC-SHIMPO Pugmill extruding dies are made of stainless steel and fit any NRA-04, NVA-04S, and NVS-07 pugmill.
Contact your local dealer to order.
Coil Die
NIDEC-SHIMPO Pugmill extruding dies are made of stainless steel and fit any NRA-04, NVA-04S, and NVS-07 pugmill.
Contact your local dealer to order.
Tile Die
NIDEC-SHIMPO Pugmill extruding dies are made of stainless steel and fit any NRA-04, NVA-04S, and NVS-07 and pugmill.
Contact your local dealer to order.
Pugmill Die Set
NIDEC-SHIMPO Pugmill extruding dies are made of stainless steel and fit any NRA-04, NVA-04S, and NVS-07 pugmill. The set includes the Assorted Die P-DIE-ASRT-ASSY, Coil Die P-DIE-CYL-ASSY, and Tile Die P-DIE-TL-ASS.
Contact your local dealer to order.
