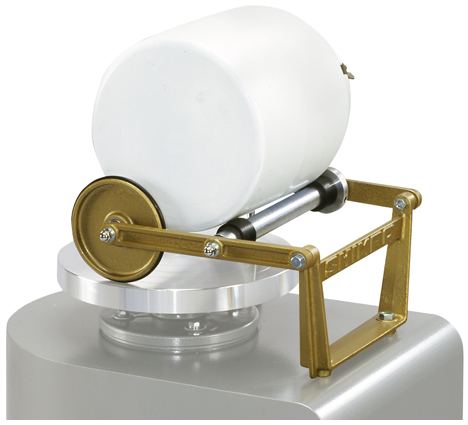

Ball Mill Rack Attachment
The Ball Mill Rack Attachment attaches to most NIDEC-SHIMPO wheels when used with a 304.8 mm wheel-head. This space-saving rack will allow for variable speed milling. The rack accommodates jars from 76 mm – 12.7 mm to 228 mm diameter up to 254 mm long. Made of heavy-duty cast iron, the unique folding feature lets you use your NIDEC-SHIMPO wheel for throwing without detaching the rack.
Features
-
- Heavy-duty milling; precise milling with variable speed
- Compact design; space-saving/folding design lets you use your wheel for throwing without detaching the rack
- Model construction; heavy-duty cast iron
- Heavy-duty cast iron construction
- Wheel Attachment fits on most NIDEC-SHIMPO wheels with a 304.8 mm wheel-head
| Rack Attachment Fit | Fits RK-3E or RK-3D with a 304.8 mm wheel-head (Does not fit M-1) |
| Jar Dimensions | 76.2 mm – 12.7 mm to 9″ diameter up to 228.6 mm long |
| Weight | 4.08 kg |
Porcelain Jars
One to ten liter Porcelain Jars are also available to complete your milling needs. Every jar comes with the porcelain balls needed for milling.
1-Liter Porcelain Jar
1-Liter Porcelain Jar comes with about 40 balls ranging from 12.7 mm – 25.4 mm diameter (Mixed) with an internal capacity of 64.0 rpm.
The 1-Liter Porcelain Jar dimensions 146.05 mm D x 203 mm H.
2-Liter Porcelain Jar
2-Liter Porcelain Jar comes with about 60 balls ranging from 19.05 mm – 31.75 mm in diameter (Mixed) with an internal capacity of 53.4 rpm.
The 2-Liter Porcelain Jar dimensions 177 mm D x 241 mm H.
3-Liter Porcelain Jar
3-Liter Porcelain Jar comes with about 40 balls ranging from 25.4 mm – 31.75 mm diameter (Mixed) with an internal capacity of 45.7 rpm.
The 3-Liter Porcelain Jar dimensions 203 mm D x 279 mm H.
5-Liter Porcelain Jar
5-Liter Porcelain Jar comes with about 60 balls ranging from 25.4 mm – 31.75 mm diameter (Mixed) with an internal capacity of 40.0 rpm.
The 5-Liter Porcelain Jar dimensions 241.3 mm D x 317.5 mm H.
10-Liter Porcelain Jar
10-Liter Porcelain Jar comes with about 60 balls ranging from 25 mm – 31.75 mm in diameter (Mixed) with an internal capacity of 32.0 rpm (Note: *Special order only).
The 10-Liter Porcelain Jar dimensions 241.3 mm D x 317.5 mm H.
