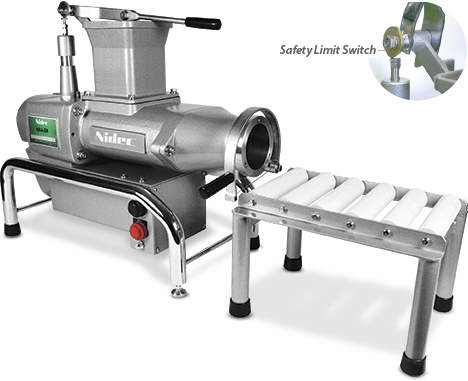

The NRA-04/04S pugmill features newly designed twin augers and a forceful direct gear driven motor. It’s high quality wedging and extruding capacity obtained produces virtually air-free clay and increases clay workability that make this compact pugmill one of the most efficient and competitive on the market.

The NRA-04S pugmill includes high quality stainless steel nozzle, auger case, and rollers.


    • Direct gear driven motor provides maximum mechanical force for blending, requiring minimum operator effort
    • High extruding capacity; twin stainless steel mixing augers blend and extrude up to 399 kg per hour
    • Dual safety system; limit switch automatically cuts power to pugmill when augers are exposed. Stop button allows for immediate operator control
    • High Quality Wedging Function; twin augers typically found only in large industrial machines, increase wedging capacity and produces practically air-free clay without a vacuum
    • Includes a clay cut-off wire and clay receiving table
Motor 200W, 4P, Single Phase, 230V, 50Hz
Extruding Capacity 400 kg
Nozzle Diameter 90 mm
Hopper Size 90 x 90 mm
Dimensions 665 (1025 including clay roller shelf) x 335 x 560 mm
Weight NRA-04: 65 kg | NRA-04S: 75 kg
